6090 1212 1218 Advertisement CNC Router

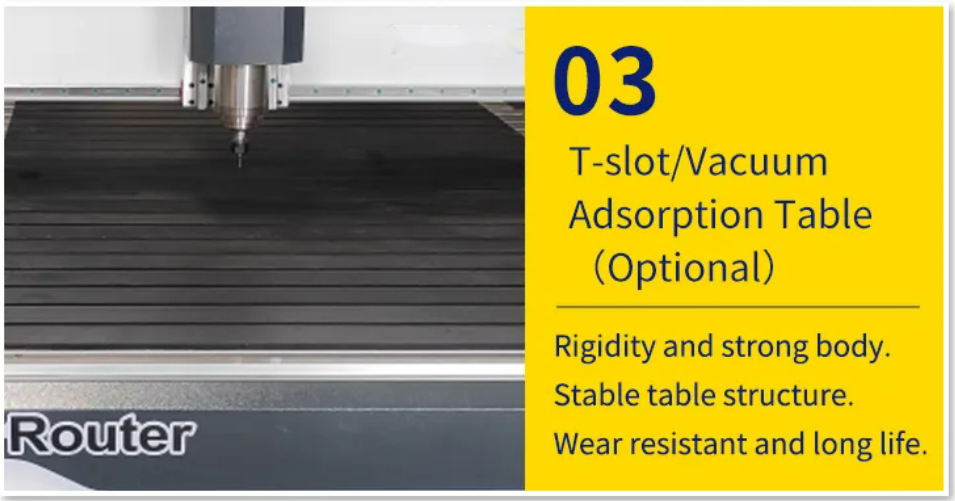

1.Aluminum grooved and moving table, ideal for machining metal or wooden molds

2.Axes X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity

3.TBI ball screw transmission improves positioning accuracy and fast speed

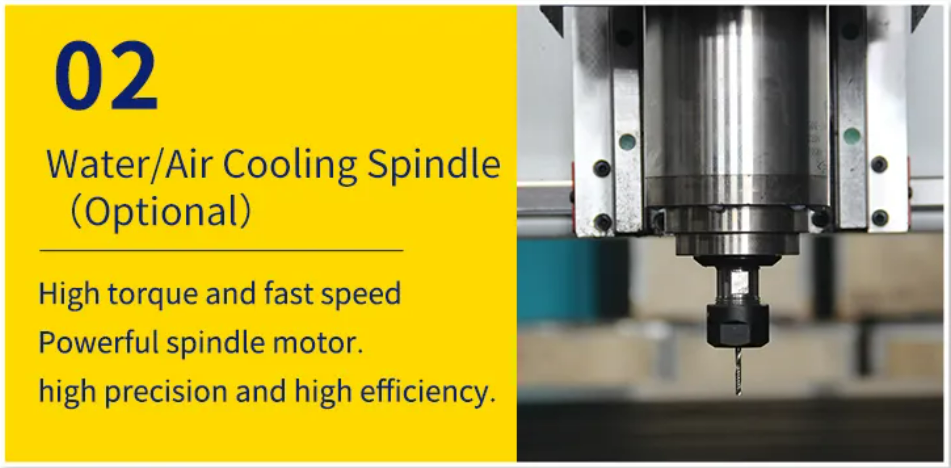

4.Selection of high speed 3.0kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials

AKTEK-Advertisement CNC Router Introduction:

* Equipped with water -cooled spindle, it has the advantages of high processing precision and low noise.

* With Fuling frequency converter, the performance is more stable and easy to operate.

* Adopting Taiwan TBI ball screw, the transmission is stable and the machining precision is higher

AKTEK-Advertisement CNC Router Application:

1.Wood furniture industry: Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite

gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: Advertising identification, sign making, acrylic engraving and cutting, crystal word making,

blaster molding, and other advertising materials derivatives making.

3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic

sheeting, PVC pipe, wooden planjs and other non-metallic mold.

4. Relief sculpture and 3D engraving.

AKTEK-Advertisement CNC Router Technical Parameters:

Machine Model		AK-6090/AK-1212/AK-1218
Working Size		600900mm/12001200mm/1200*1800mm

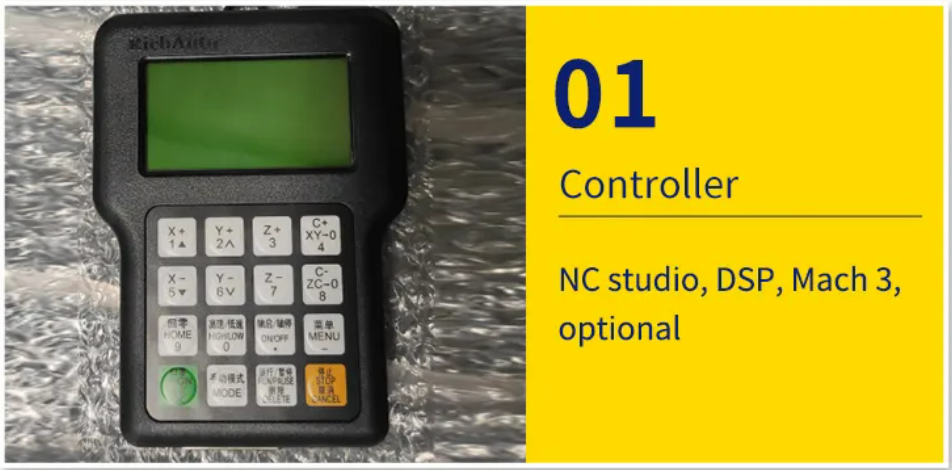

Control System		DSP/NCstudio Controller system
Motor		Stepper motors
Spindle Power		1.5KW/2.2KW/3KW Water-Cooled Spindle
Spindle speed		0-24000rpm
Max Traveling Speed		7200mm/min
Max Working Speed		5000mm/min
Processing Accuracy		±0.01mm
Reposition Accuracy		≤0.01mm
Software		Artcam
Voltage		220v, 50/60 Hz
Water Tank		Optional
Computer (English Version)		Optional(Depends on system)
Collets		1-10mm (A whole set)
File Format		G-code, HPGL
Power source		AC220V/50HZ
Package Dimension		780mm700mm1300mm
Gross Weight		350KG
Warranty		24 months for machine with 24 hours on-line technical support
