Product Overview
Parameter
| Medel No: | AKTEK-W1325/1530/2040 WOOD CNC ROUTER |
| Guide Rail | configure with Japan THK linear rail 25mm width |
| Package size | machine with disassemble into 3 parts,one gantry,one machine body and one control unit |
| X.Y working area | 1300*2500mm, Machine transmitting by rack and gear |
| Z working area | 150mm |
| Max.moving speeding | 25m/min |
| Working table | Standard table with aluminum T-slot table ,can put pvc into the table |
| Control system | Most advance DSP Hand control |
| Spindle motor power | 4.5KW air cooling spindle motor |
| Surrounding for software | Window 7/10/XP |
| Power (spindle is not inculded | More than 1500W |
| Working voltage | AC 380v/50-60HZ (standard ) |
| Main axis rotating speed | 0-24000rpm/min |
| Work mode | Large stepper motor and drive , Servo(Optional) |
| Software | Ucancam |
| Control | Handle control ,DSP 8GB NC control system |
| Engraving tpols &collets | 7mm.6mm.12.7mm(sending you 10 pcs with the machine )8 collects standard with machine (ER20 Type) |
| Optional | Dust collect ,vaccum system, servo system |
Applications:
1. Woodworking industry
Doors; Cabinets; Tables; Chairs. Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry Signage; Logo; Badges; Display board; Meeting sign board; Billboard Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration wood crafts; gift box; jewelry box 5. Others Relief sculpture and 3D engraving and Cylindrical object.
Features
1.Adopt heavy duty machine frame, forming by CNC planer-type milling machine, more stronger, stability
2.High accuracy THK linear guide from Japan, high accuracy helical gear rack transmitting, more stability, high precision stability.
3.Configured advanced DSP control system on line special controlling system, indepent power supply, qualick calcaulation, strong anti-interferencess peroformance, Own more powerful application performance .
4.Standard 8GB memory capacity, support transmitting files from USB flash disk directly, multiple files can be saved simultaneously,processing any files as you like .
5.Has power off restoration,continue processing at break point, auto tool height adjusting device, repeat processing, support 9 coordinates setting, user friendly design .
6.Standard configured 380V 4.5KW air cooling spindle motor, high power, high efficiency.
7.Be compatible with many CAD/CAM software like type3/Art-cam/Casmate/Proe/UG/Artgrave etc .
8.Independent control cabinet,Stronger power and weak power separate, maintenance easily .
9.Can optional the vaccum system and dust collector system .

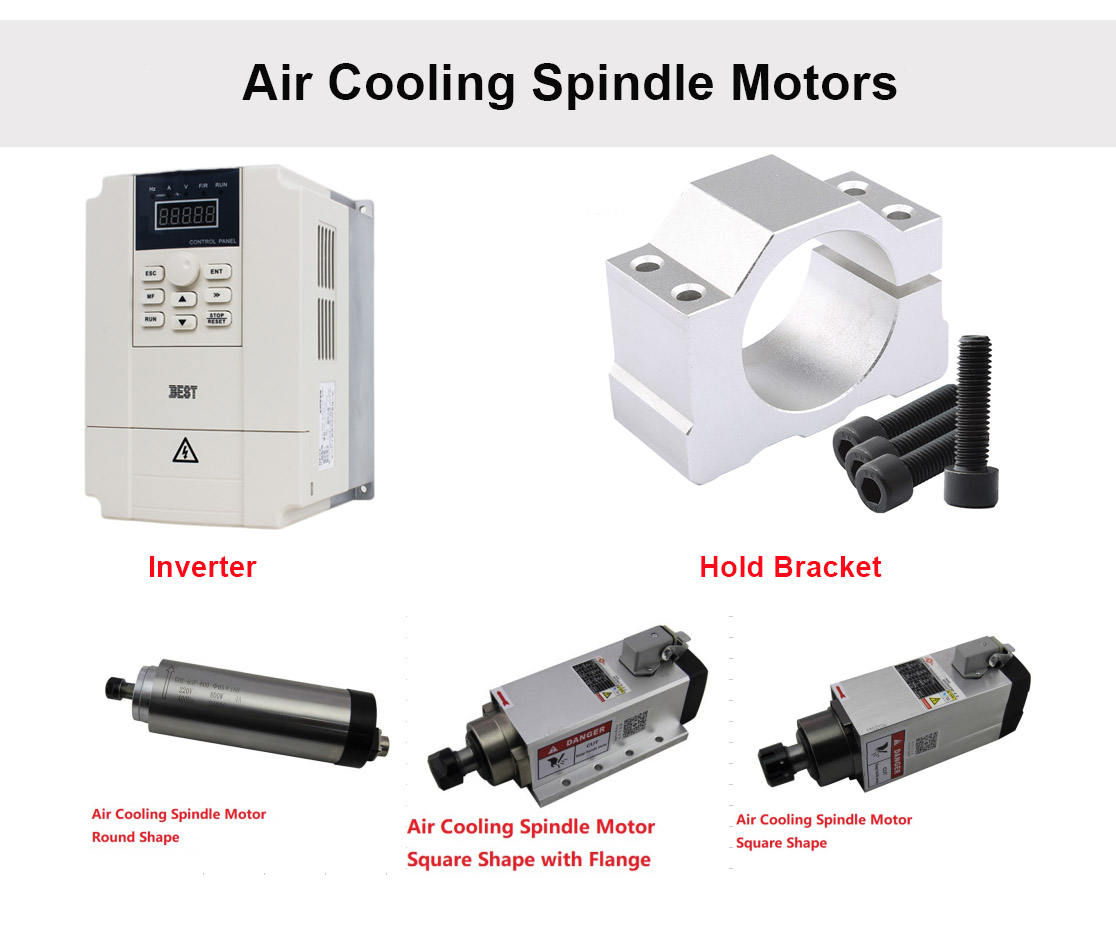

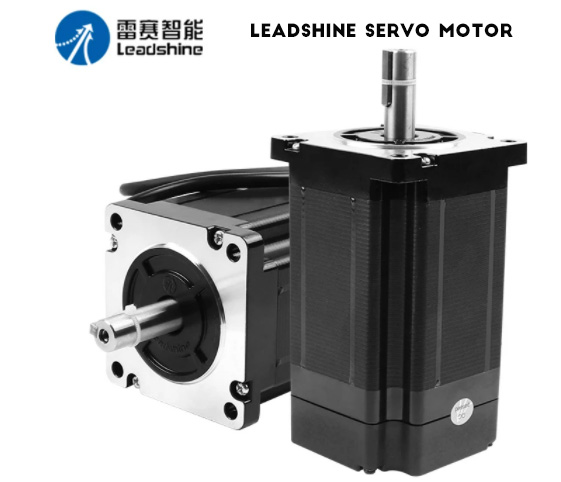

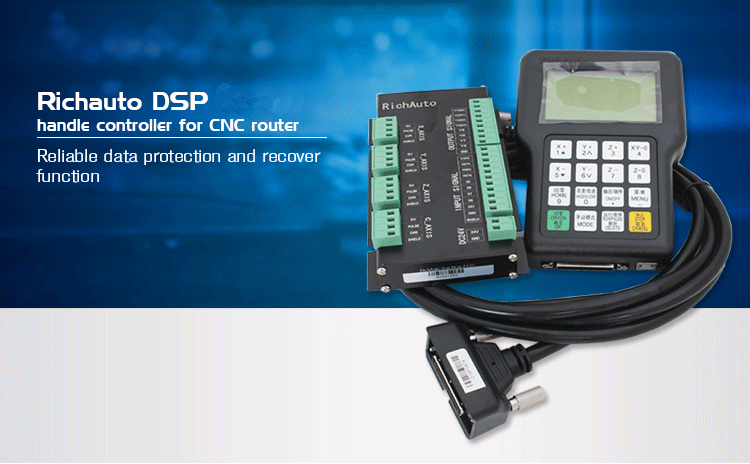

Machine Spare Parts Show

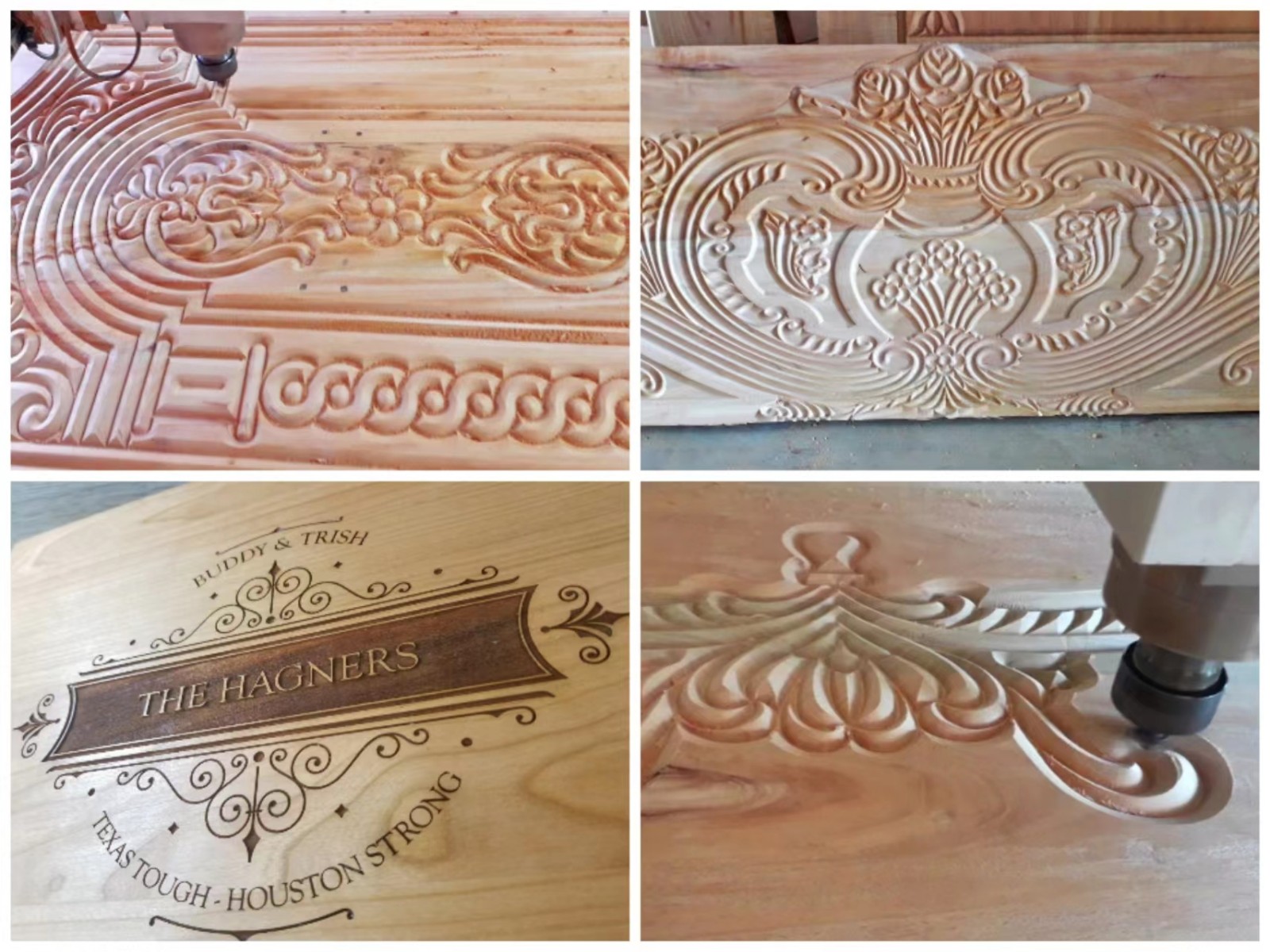

Samples Show
Our Service
Pre-Sales Service
1.We have many exhibitions very year, hundreds of clients was coming to our booth for further communication.
2. 24-hours online Inquiry and consulting support.
3.Support sample testing .
4.We welcome you to visit our factory.
After-Sales Service
1. Training how to instal the machine, training how to use the machine online.
2. Engineers available to clients’ factory for training.
3.Guarantee for one year.
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining
6.Free technician training for customers.

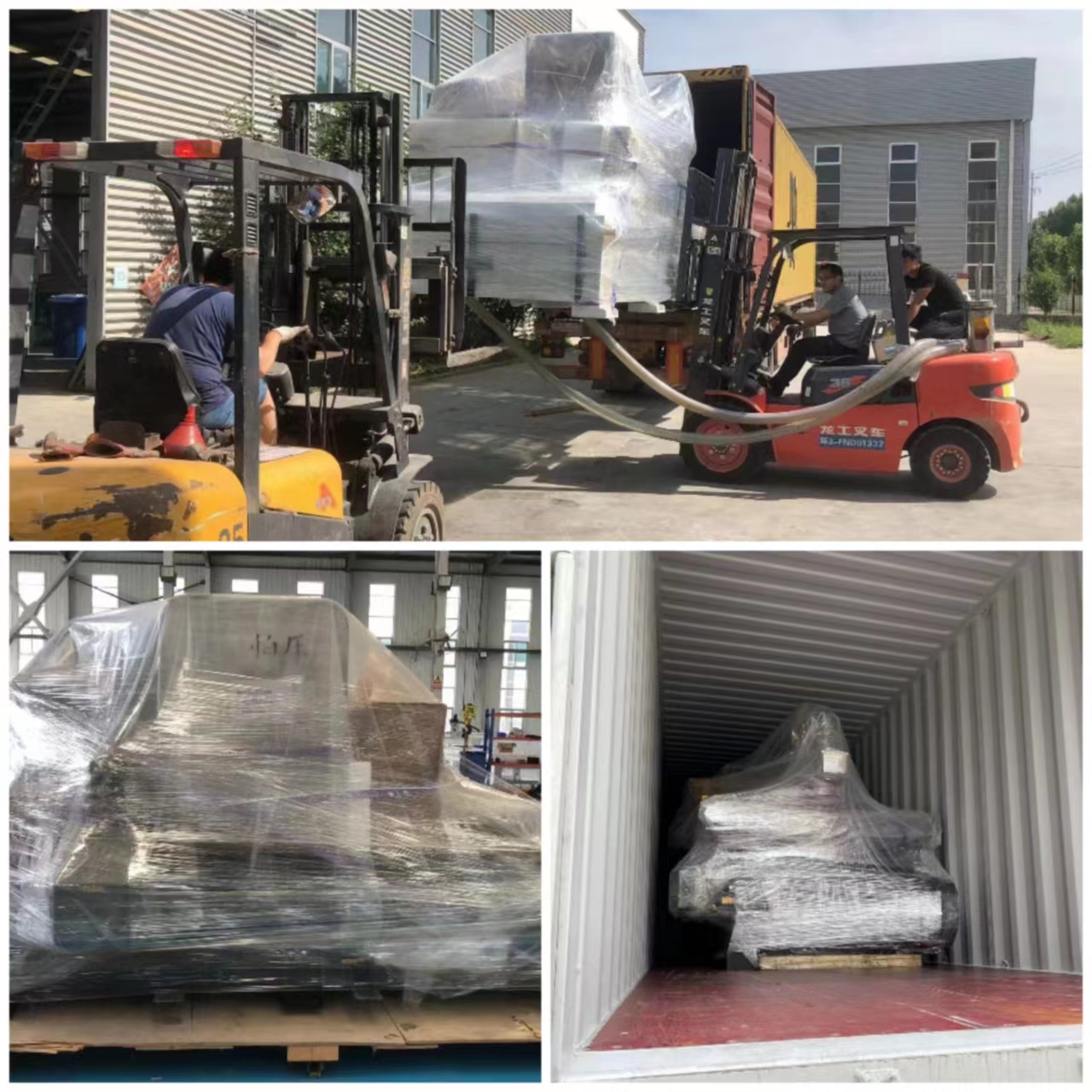

Shipment
